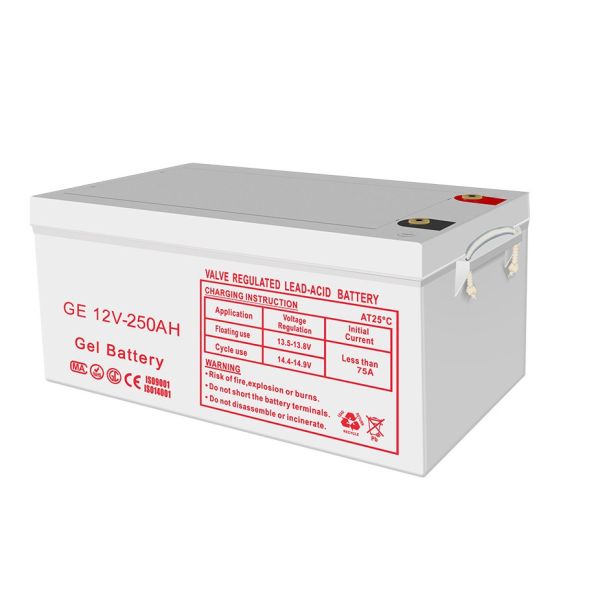

IEC 61215 12V 250AH Gel Solar Battery AGM Gel Battery

Name: IEC 61215 12V 250AH Gel Solar Battery AGM Gel Battery
Brand: LEEHO
Price: 1 USD

Quality IEC 61215 12V 250AH Gel Solar Battery AGM Gel Battery for sale

Brand Name : LEEHO

Model Number : GEL 12V 250AH

Certification : IEC61215/IEC61730/TUV/CQC/ISO

Place of Origin : china

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6000 Piece/Pieces per Month

Packaging Details : Package by strong kraft box.

Battery Size : 12V`250AH

Battery type : Gel Battery

Capacity : 250Ah@10hr-rate

Design life : 10years

Case material : A.B.S

Application : Home Appliances, Golf Carts, Electric Power Systems, Solar Energy

Weight : 63.8KGS

Terminal type : T11

Self-discharge : Less 2%/month

SIZE : 522*240*226

Warranty : 1year

Contact Now

12V 250AH Gel Batteries Super Long Life Battery 12 Volt Agm Solar Battery Gel Batteries

Nominal Voltage	12V
Nominal Capacity(10HR)	250AH
Dimension	Length	522 ±3mm (20.55 inches)
	Width	268 ±2mm (10.55 inches)
	Container Height	220 ±2mm (8.66inches)
	Total Height (withTerminal)	225 ±2mm (8.86 inches)
Approx Weight	Approx 63.8 kg (140.65lbs)
Terminal	T11
Container Material	ABS
Rated Capacity	257.3AH/12.8A	(20hr ,1.80V/cell,25℃/77℉)
	250.0 AH/25.0A	(10hr,1.80V/cell,25℃/77℉)
	218.7 AH/43.7A	(5hr,1.75V/cell,25℃/77℉)
	198.7 AH/66.2A	(3hr,1.75V/cell,25℃/77℉)
	161.5 AH/161.5A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	2000A (5s)
Internal Resistance	Approx 2.0mΩ
Operating Temp.Range	Discharge : -30~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 75.0A.Voltage Communication power supply 14.4V~14.9V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	GEL batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter.

Features:

low resistance characteristics and high efficiency
low self-discharge, strong recovery ability, adaptable temperature: -20℃-60℃
Leadingot purity reaches 99.9%
Anti-fall, anti-corrosion, strong resistance to pressure

IEC 61215 12V 250AH Gel Solar Battery AGM Gel Battery

Safety Valve:With up-dated AGM valve regulated technology Terminal:Good Electrical conductivity,Good anti-corrosion

Through-wall welding thechnology:Advanced pole-group welding, casting and through-wall welding technology;

 Plate:The raw material is lead ingot with purity up to 99.9%

Container:Battery cabinets are applied ABS material.

Our Advantages

The raw material is LEAD ingot with purity up to 99.9%:1.Durable;
 2.multiple times of cycle;
 3.10years design life.

Patented formula: 1.1 year storage ;
 3.Strong recovery ability;


2.Low self-discharge;4.Adaptable temperature: -20℃-60℃

Automatic equipment production:

Standardizied quality; 2.High efficiency production;
7 days delivery.


Solar/wind energy photovoltaic system

Armamentarium

Electrocar

Monitoring system

Educational Multimedia Project

Applied range

Telecom, Internet (cloud computing/Internet of Things/Big data center/ARTIFICIAL intelligence), Government, banking,Manufacturing,Transportation, health care, education, wholesale and retail, petroleum and petrochemical, electricity, securities and other finance, insurance,Logistics, households and individuals, coal and other energy, research, others...

20 Years industrial experience with three production bases in China & Malaysia. Owns advanced equipment and instruments and builds Automatic production line.
